• The manual bilge pump output is 33 liters (9 gallons) per minute.

• The automatic bilge pump output is 41 liters (11 gallons) per minute.

The electric bilge pumps are submersible. One electric bilge pump is located under the berth of the aft cabin and can be accessed by opening the floor hatch. The other electric bilge pumps are located in front of the toilet and can be accessed by opening the toilet front wall. The electric pumps are by default in automatic mode and pump out the bilge once the float-switch is triggered. The electric bilge pumps can also be started manually from the boat’s main control panel.

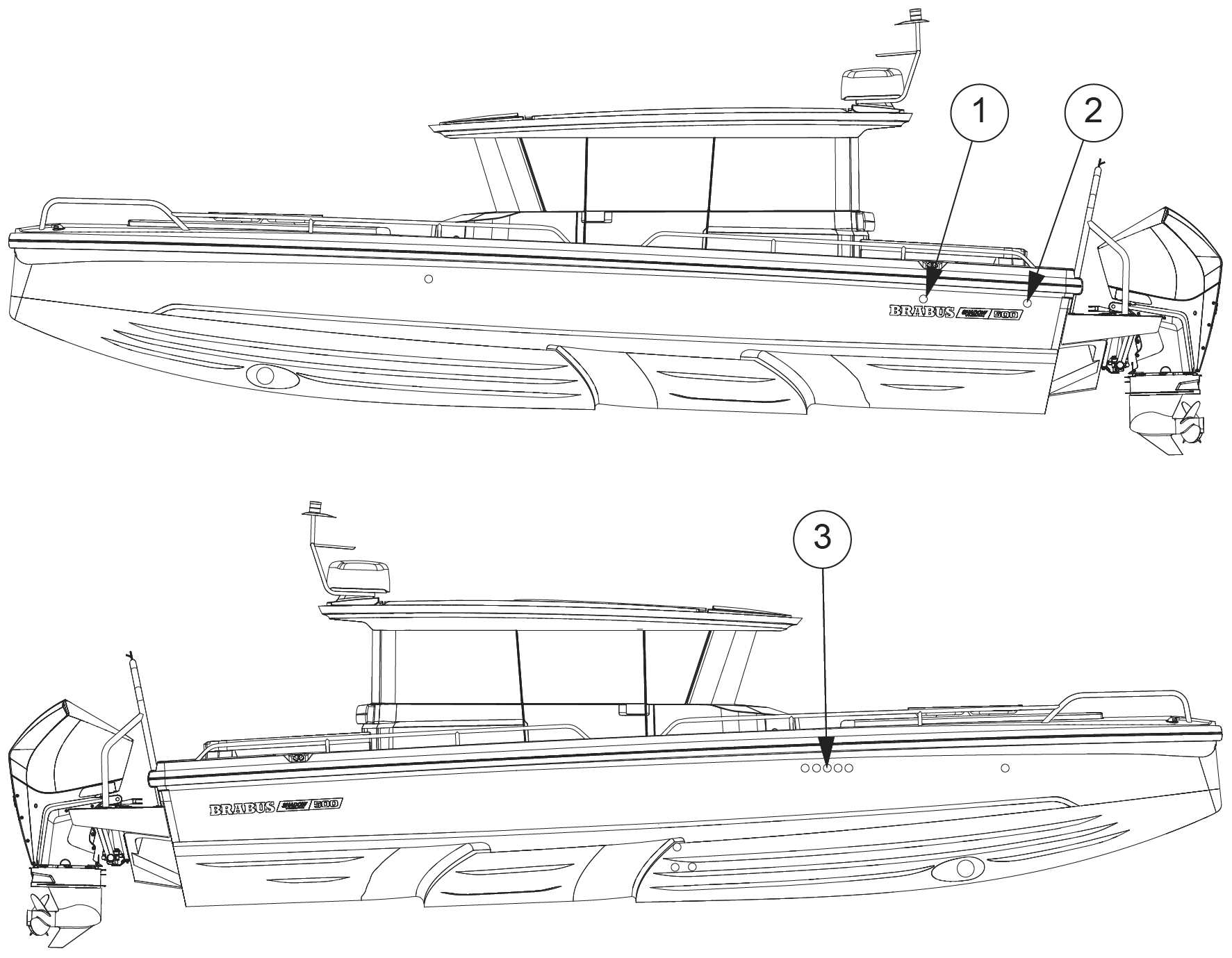

The figure shows the seacocks and inlets through the side. Always check in the spring when launching that the inlets through the side and bottom are tightly closed.
