4.1.3.1 Bilge pumps and outlets

Bilge pump output
  • The manual bilge pump output is 33 liters (9 gallons) per minute.

  • The automatic bilge pump output is 41 liters (11 gallons) per minute.

Bilge pump locations

The manual bilge pump's control handle is located in the port side stowage casing of the aft deck.

The electric bilge pumps are submersible. One electric bilge pump is located under the berth of the aft cabin or under the storage hatch. Another electric bilge pump is located under the front cabin floor.

The electric bilge pumps are by default in the automatic mode and pump out the bilge once the float-switch is triggered. The electric bilge pumps can also be started manually from the boat’s main control panel.

One bilge pump is located in the technical space. It is operated from the techical space control panel.

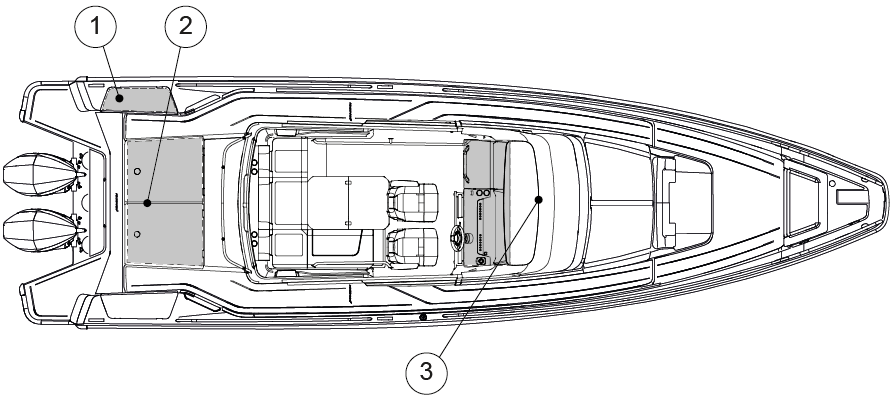

(1)

Manual bilge pump

(2)

Aft electric bilge pump

(3)

Front electric bilge pump

Bilge pump outlets

(1)

Manual bilge pump outlet

(2)

Aft bilge pump outlet

(3)

Bow bilge pump outlet
