Fastening points (or cleats) are located both at the stern, midship and bow.
-
When anchoring or towing, the forward force is 24.9 kN.
-
When mooring the forward force is 20.4 kN.
-
When mooring the rearward force is 17.4 kN.

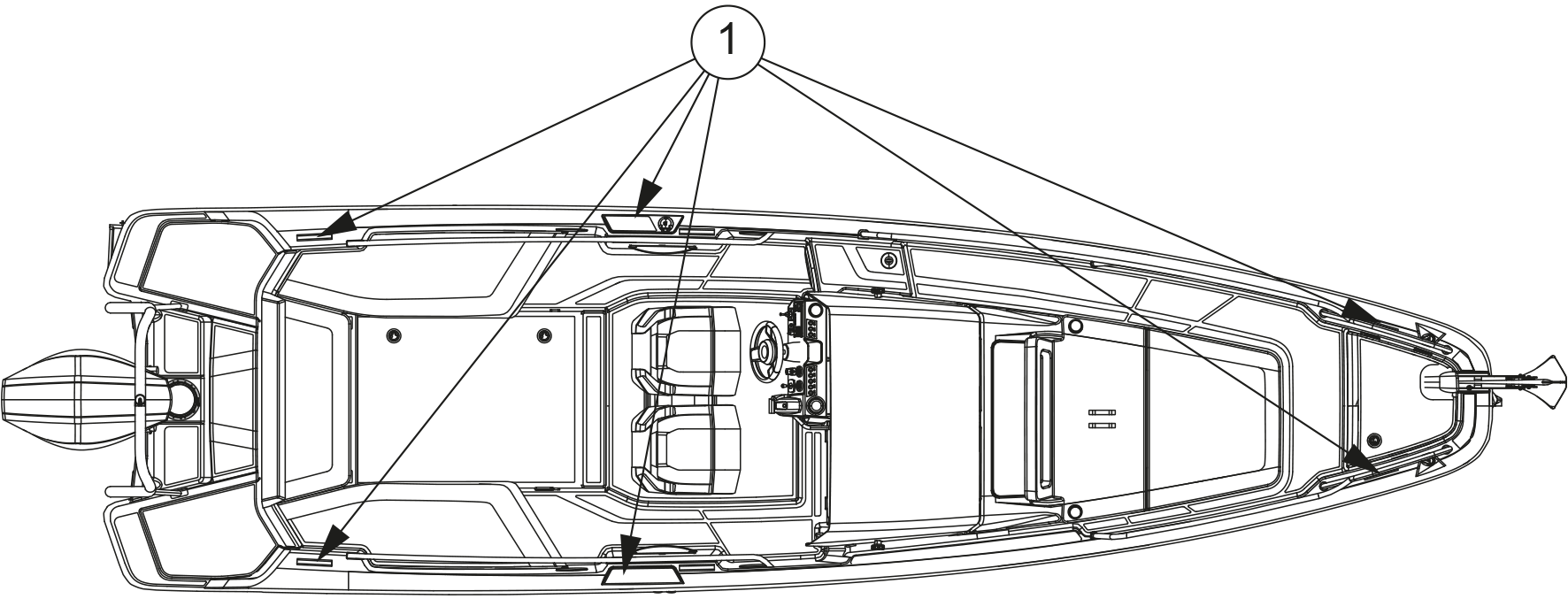

- (1)
-
Fastening points
The breaking strength of lines shall in general not exceed 80% of the breaking strength of the fastening points.
