Risks of fire, explosion and electric shock!
Improper use of electric DC and AC systems may result in fire, explosion or electric shock.
Follow the instructions carefully.
Never leave the boat unattended with the electrical system energized, except automatic bilge pump, fire protection, and alarm circuits.

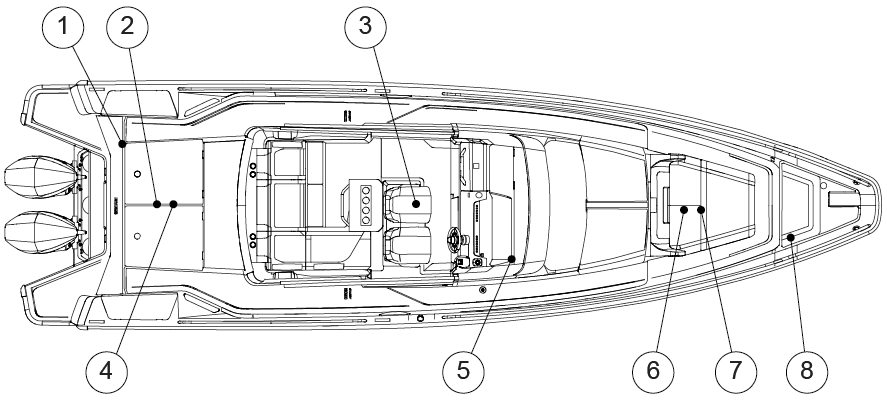

- (1)
-
High-current fuses
- (2)
-
Batteries
- (3)
-
Main switches (located under the middle front-row seat)
- (4)
-
Shorepower charger
- (5)
-
Fuse panel
- (6)
-
Main fuse of bow thruster and anchor winch
- (7)
-
Battery of bow thruster and anchor winch
- (8)
-
Shorepower fuse and control box
